Our Product
OUR CUSTOMIZED SERVICES
Electrical Trunkey Contractors
LT ,HT & EHT Industrial Projects
Malls
Commercial Complexes
IT Parks
Supermarkets
Hospital
Supply of Panels

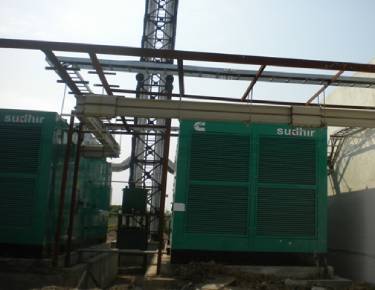

Installation of LT & HT DG Sets
Organizing CEIG Approval
Multiplex Theatres
Hotels
Offices
Residential Towers
Supply & Installation of sandwitch & Air Insulated Busduct

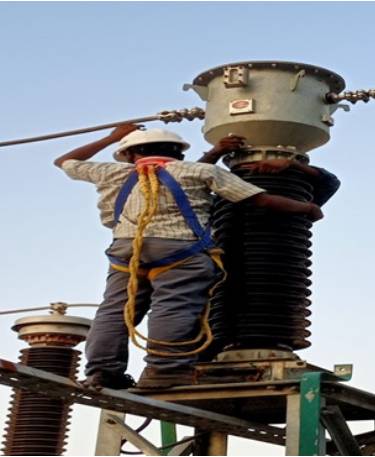

Installation of HT Equipment
Organizing Safety Certificates
Load Sanction from TNEB
Annual Electrical Maintenance
Busduct Accessories

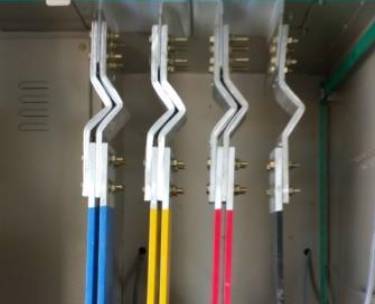

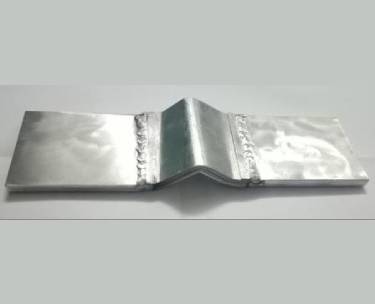

- Copper Laminated Flexible

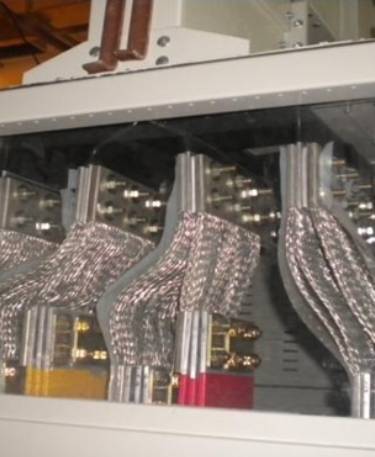

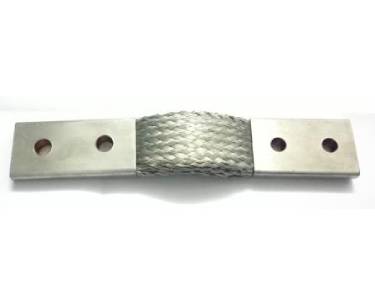

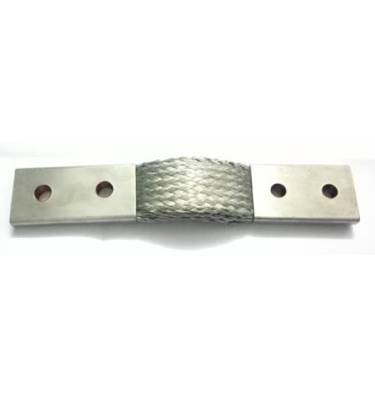

- Copper Braided Flexible

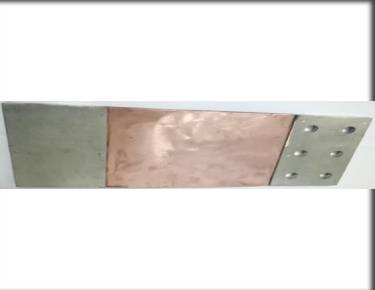

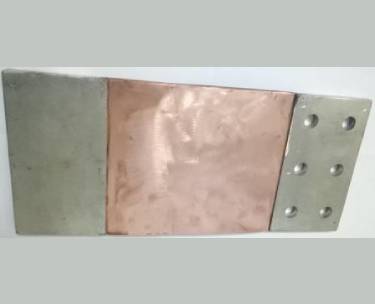

- Aluminum Foil Type Flexible

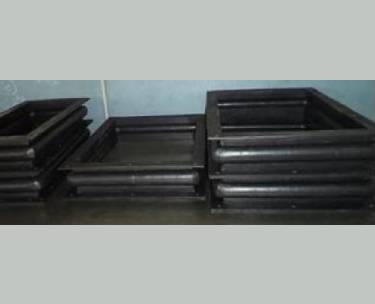

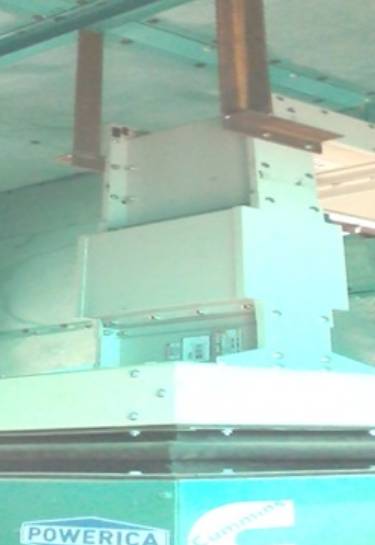

- Rubber Bellows for DG side
- Adaptor Boxes for Transformer side & Panel Side
- BBT Supporting Arrangement for Indoor & Outdoor
- Earth strip Arrangement for BBT
- BBT End terminations

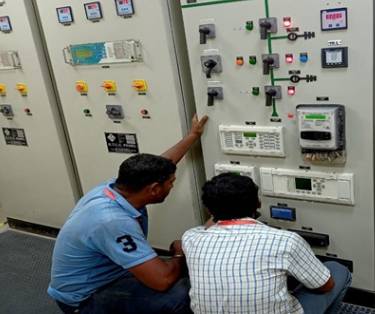

Our Range of Panels

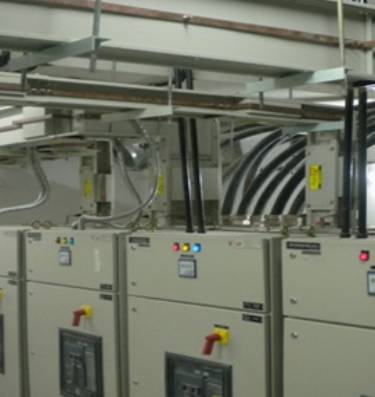

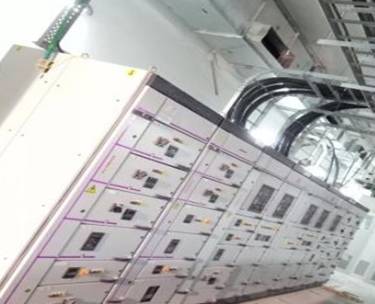

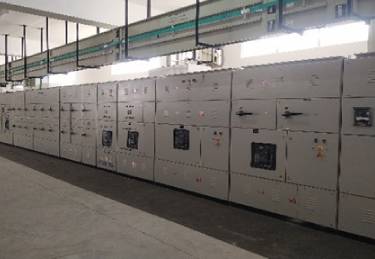

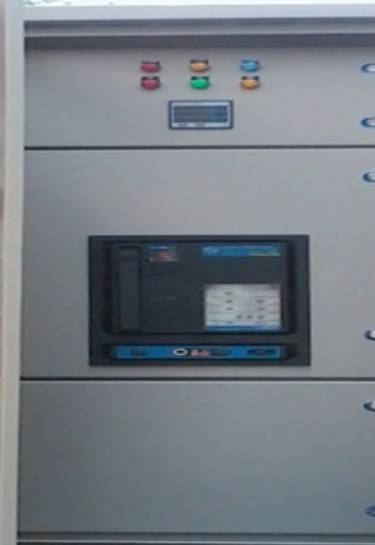

- HT & LT Panels Boards
- Sub Switch Boards
- Distribution Boards
- Automation Power Factor Control Panel
- Motor Control Centres
- Change Over Panels
- AMF Panels
- Special Machinery panels
- ACDB &DCDB
- Power Control Centres
- Metering Panels
One-on-One Comparison
| Factors | Traditional Cable | Modern Busbar Trunking | Technical Comparison |
|---|---|---|---|
| Energy Efficiency | Low | High | Voltage drop |
| Safety Features | Less | More | SC withstand capacity (25kA to 100+kA), Protection against fire, Combustive energy (80%less than cable) |
| Service Life | Low | High | Average service life is >20 years |
| Flexibility to Requirements | No | Yes | Load can be added and adjusted on the existing system |
| Installation Cost | High | Low | Shorter installation time, less support and space required (30% saving) |
| Aesthetic | Poor | Good | Compact in size and well finished surface |
| Space Required | Large | Small | Single run for multiple circuits |
| Mechanical Strength | Low | High | Metal Enclosure |
| Investment on Material | Low | High | Payback period of avg. 4 years |

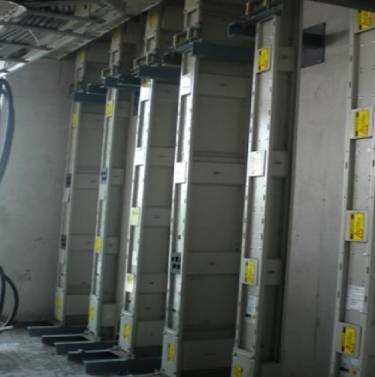

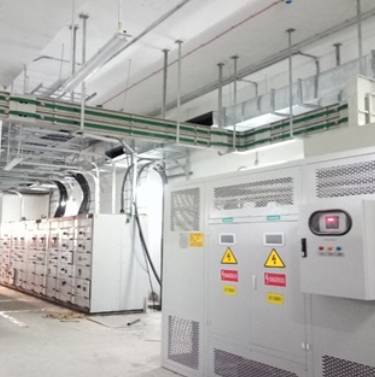

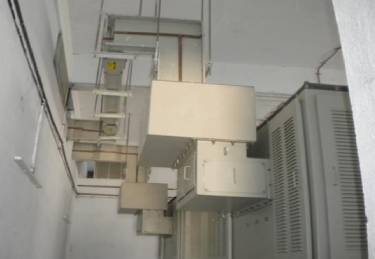

Busbar Trunking System
| Specification | Option | BBT System |
|---|---|---|
| Type | Air-Insulated or Sandwich | Sandwich |
| Voltage Level | 415V, 690V or 1000V | Max. Up-to 1000V |
| Ampere Rating | 400A to 6300A | 400A to 6300A |
| Conductor | Aluminium & Copper | Aluminium & Copper |
| Phase Combination | 3P with 50%N or 100%N or 200%N with/without internal Earth | All |
| Ingress Protection | IP-42, IP-54, IP-55, IP-65, IP-66, IP-67 and IP-68 | IP-54, IP-55, IP-67 and IP-68 |
| Insulation | Air or Polymer or Epoxy | Epoxy Compound |
| Enclosure | GI or Aluminium | GI and Aluminium |
| Short Circuit Withstand Capacity | 25kA to 100kA | 25kA to 100kA |
| Power Frequency Withstand Voltage | 2.5kV for 1 min. | 3.5kV for 1 min. |
